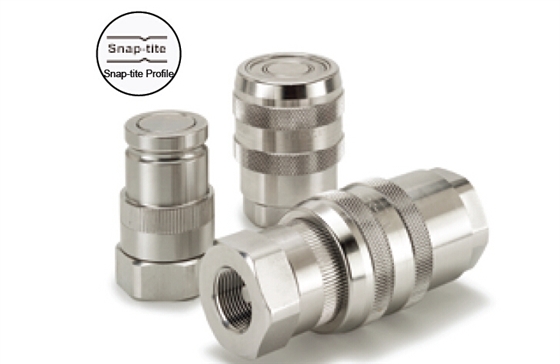

Parker Snap-tite 71 Series High Pressure PARKER接头 PARKER卡套接头

产品特性：
球锁式一按即连结构；Push-to-Connect - Ideal one-hand operation when one half is mounted. Sleeve retracts to disconnect.
平面设计，基本杜绝介质泄漏和气泡混入，同时便于系统检查和清洗；
耐汚、重载式结构，可以承受恶劣的使用环境；Rugged Unit - Heavy duty construction ideally suited for tough applications
流线型设计、压力损耗低；Superior Flow and Low Pressure Drop
材质：碳钢表面镀锌、316不锈钢、高强度不锈钢Versatile Construction - Available in plated steel, stainless steel & high pressure stainless steel
尺寸规格：1/8″—2″Range of Sizes - 1/8" thru 2" sizes are available
工作压力：3000—10000psi,Pressure Capability - Designed for operating pressures up to 10,000 psi (690 bar).
获挪威船级社（DNV）认证
选型资料（插入链接）
Flush Face/Dry Break - spillage and system contamination are held to a minimum with flush valving
Sleeve lock Feature - This optional feature protects against accidental disconnection
Autoclave Cone & Threaded Fittings are Available
特征：
- 符合Snap tite标准要求
- 平齐端面阀芯，无溢流
- 快插式连接
- 标配套筒锁
- 可选碳钢及316不锈钢材料

应用举例：
- 工程机械
- 液压工具
- 海工行业
